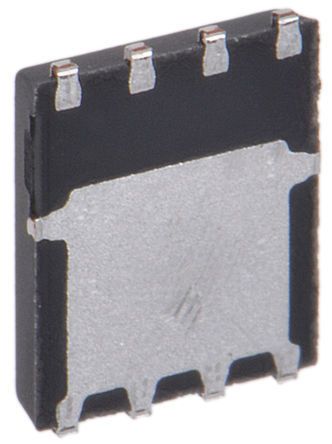

![MagnaChip MDU1518URH 8715025](http://nguyenxuong.com/cdn/shop/products/R8715025-01_1c686490-8d08-4dc2-936b-2d6fe60560b1_332x444.jpg?v=1594332131)
MDU1518URH N-Channel MOSFET, 94 A, 30 V, 8-Pin PowerDFN56 MagnaChip [MDU1518URH]; 871-5025
by MagnaChip
0₫
Mã kho: 8715025
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 94 A |
Maximum Drain Source Voltage | 30 V |
Package Type | PowerDFN56 |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 6.2 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.7V |
Maximum Power Dissipation | 65.7 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Typical Gate Charge @ Vgs | 28.8 nC @ 10 V |
Forward Diode Voltage | 1.1V |
Length | 6.1mm |
Transistor Material | Si |
Width | 5.1mm |
Height | 1.1mm |
Maximum Operating Temperature | +150 °C |
