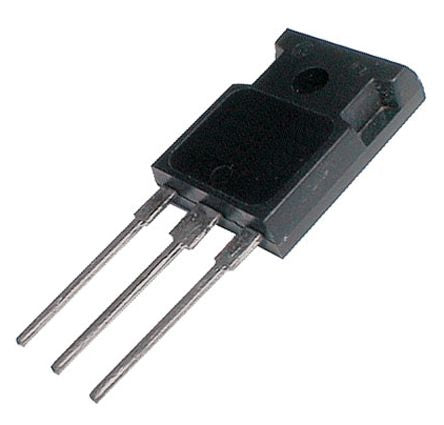

IXTX120N65X2 N-Channel MOSFET, 120 A, 650 V X2-Class, 3-Pin PLUS247 IXYS [IXTX120N65X2]; 168-4818
by IXYS
0₫
Mã kho: 1684818
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 120 A |
| Maximum Drain Source Voltage | 650 V |
| Package Type | PLUS247 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 23 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5V |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 1.25 kW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Forward Diode Voltage | 1.4V |
| Maximum Operating Temperature | +150 °C |
| Series | X2-Class |
| Minimum Operating Temperature | -55 °C |
| Height | 5.21mm |
| Width | 21.34mm |
| Typical Gate Charge @ Vgs | 230 nC @ 10 V |
| Length | 16.13mm |
| Transistor Material | Si |
