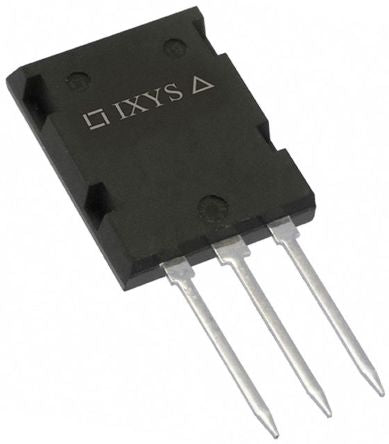

IXFX78N50P3 N-Channel MOSFET, 78 A, 500 V HiperFET, Polar3, 3-Pin PLUS247 IXYS [IXFX78N50P3]; 802-4509
by IXYS
0₫
Mã kho: 8024509
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 78 A |
| Maximum Drain Source Voltage | 500 V |
| Package Type | PLUS247 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 68 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5V |
| Maximum Power Dissipation | 1.13 kW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Transistor Material | Si |
| Series | HiperFET, Polar3 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 16.13mm |
| Height | 21.34mm |
| Typical Gate Charge @ Vgs | 147 nC @ 10 V |
| Width | 5.21mm |
