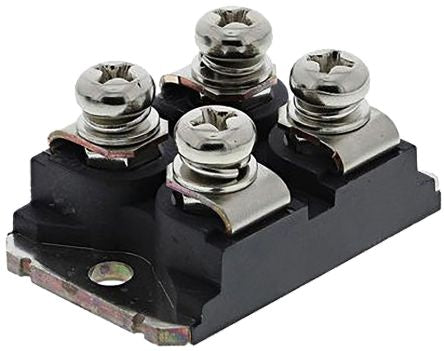

IXFN200N10P N-Channel MOSFET, 200 A, 100 V Polar HiPerFET, 4-Pin SOT-227B IXYS [IXFN200N10P]; 168-4576
by IXYS
0₫
Mã kho: 1684576
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 200 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | SOT-227B |
| Mounting Type | Surface Mount |
| Pin Count | 4 |
| Maximum Drain Source Resistance | 7.5 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5V |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 680 W |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Forward Diode Voltage | 1.5V |
| Length | 38.23mm |
| Typical Gate Charge @ Vgs | 235 nC @ 10 V |
| Series | Polar HiPerFET |
| Maximum Operating Temperature | +175 °C |
| Width | 25.07mm |
| Height | 9.6mm |
