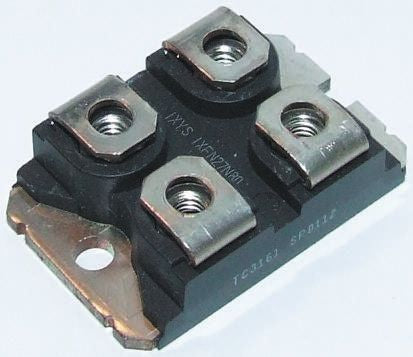

![IXYS IXFN102N30P 1684467](http://nguyenxuong.com/cdn/shop/products/R0198251-01_ffe030bc-04af-41ee-b8fb-255c7c0a1fbd_413x357.jpg?v=1593770447)
IXFN102N30P N-Channel MOSFET, 86 A, 300 V HiperFET, Polar, 4-Pin SOT-227B IXYS [IXFN102N30P]; 168-4467
by IXYS
0₫
Mã kho: 1684467
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 86 A |
Maximum Drain Source Voltage | 300 V |
Package Type | SOT-227B |
Mounting Type | Panel Mount |
Pin Count | 4 |
Maximum Drain Source Resistance | 33 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 5V |
Maximum Power Dissipation | 570 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Height | 9.6mm |
Width | 25.42mm |
Minimum Operating Temperature | -55 °C |
Series | HiperFET, Polar |
Maximum Operating Temperature | +150 °C |
Length | 38.23mm |
Typical Gate Charge @ Vgs | 224 nC @ 10 V |
Transistor Material | Si |
