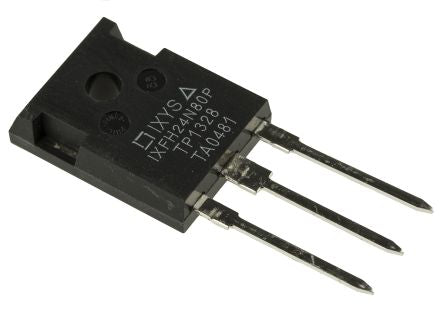

IXFH24N80P N-Channel MOSFET, 24 A, 800 V HiperFET, Polar, 3-Pin TO-247AD IXYS [IXFH24N80P]; 194-079
by IXYS
0₫
Mã kho: 194079
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 24 A |
Maximum Drain Source Voltage | 800 V |
Package Type | TO-247AD |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 400 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 5V |
Maximum Power Dissipation | 650 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -30 V, +30 V |
Number of Elements per Chip | 1 |
Transistor Material | Si |
Minimum Operating Temperature | -55 °C |
Series | HiperFET, Polar |
Height | 21.46mm |
Width | 5.3mm |
Typical Gate Charge @ Vgs | 105 nC @ 10 V |
Length | 16.26mm |
Maximum Operating Temperature | +150 °C |
