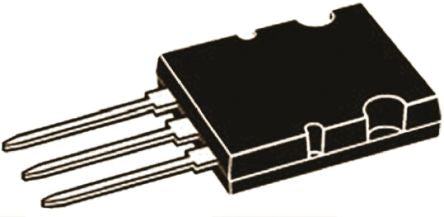

![IXYS IXFB100N50Q3 1684695](http://nguyenxuong.com/cdn/shop/products/R7115348-01_b1d794d9-b8c6-4945-8f96-bd5c5a38055b_444x217.jpg?v=1594201524)
IXFB100N50Q3 N-Channel MOSFET, 100 A, 500 V HiperFET, Q3-Class, 3-Pin PLUS264 IXYS [IXFB100N50Q3]; 168-4695
by IXYS
0₫
Mã kho: 1684695
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 100 A |
Maximum Drain Source Voltage | 500 V |
Package Type | PLUS264 |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 49 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 6.5V |
Maximum Power Dissipation | 1.56 kW |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -30 V, +30 V |
Number of Elements per Chip | 1 |
Transistor Material | Si |
Maximum Operating Temperature | +150 °C |
Series | HiperFET, Q3-Class |
Width | 5.31mm |
Height | 26.59mm |
Length | 20.29mm |
Typical Gate Charge @ Vgs | 255 nC @ 10 V |
Minimum Operating Temperature | -55 °C |
