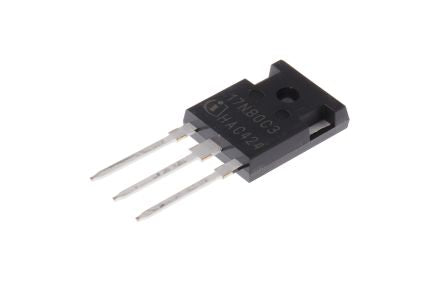

SPW17N80C3FKSA1 N-Channel MOSFET, 17 A, 800 V CoolMOS C3, 3-Pin TO-247 Infineon [SPW17N80C3FKSA1]; 752-8508
by Infineon
0₫
Mã kho: 7528508
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 17 A |
| Maximum Drain Source Voltage | 800 V |
| Package Type | TO-247 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 290 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3.9V |
| Minimum Gate Threshold Voltage | 2.1V |
| Maximum Power Dissipation | 227 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 88 nC @ 10 V |
| Height | 21.1mm |
| Maximum Operating Temperature | +150 °C |
| Length | 16.13mm |
| Width | 5.21mm |
| Series | CoolMOS C3 |
| Transistor Material | Si |
