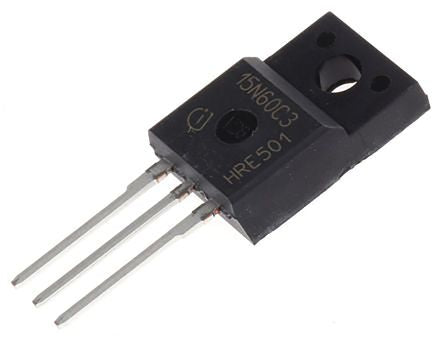

SPA15N60C3XKSA1 N-Channel MOSFET, 15 A, 650 V CoolMOS C3, 3-Pin TO-220FP Infineon [SPA15N60C3XKSA1]; 911-0702
by Infineon
0₫
Mã kho: 9110702
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 15 A |
| Maximum Drain Source Voltage | 650 V |
| Package Type | TO-220FP |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 280 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3.9V |
| Minimum Gate Threshold Voltage | 2.1V |
| Maximum Power Dissipation | 34 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 63 nC @ 10 V |
| Height | 9.83mm |
| Width | 4.85mm |
| Length | 10.65mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Series | CoolMOS C3 |
