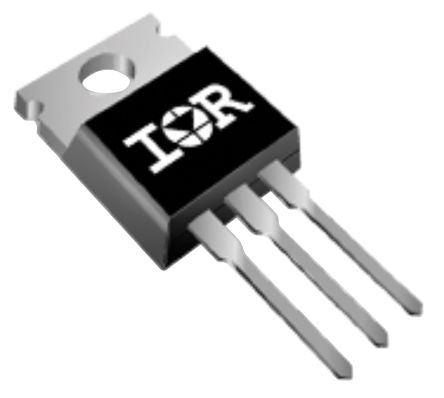

IRLU3410PBF N-Channel MOSFET, 17 A, 100 V IRLR/U3410PbF, 3 + Tab-Pin IPAK Infineon [IRLU3410PBF]; 170-2242
by Infineon
0₫
Mã kho: 1702242
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 17 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | TO-251AA |
| Mounting Type | Through Hole |
| Pin Count | 3 + Tab |
| Maximum Drain Source Resistance | 155 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 79 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 16 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 34 nC @ 5 V |
| Forward Diode Voltage | 1.3V |
| Length | 6.73mm |
| Minimum Operating Temperature | -55 °C |
| Height | 7.49mm |
| Width | 2.39mm |
| Series | IRLR/U3410PbF |
| Maximum Operating Temperature | +175 °C |
