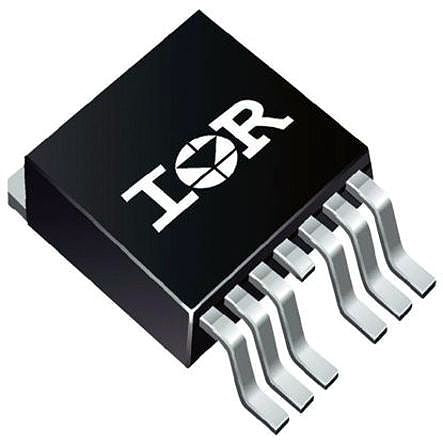

IRLS3034TRL7PP N-Channel MOSFET, 380 A, 40 V HEXFET, 7+Tab-Pin D2PAK Infineon [IRLS3034TRL7PP]; 168-6036
by Infineon
0₫
Mã kho: 1686036
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 380 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | D2PAK (TO-263) |
| Mounting Type | Surface Mount |
| Pin Count | 7 + Tab |
| Maximum Drain Source Resistance | 1.7 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 380 W |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 4.83mm |
| Forward Diode Voltage | 1.3V |
| Length | 10.67mm |
| Maximum Operating Temperature | +175 °C |
| Series | HEXFET |
| Height | 9.65mm |
| Typical Gate Charge @ Vgs | 120 nC @ 4.5 V |
| Minimum Operating Temperature | -55 °C |
