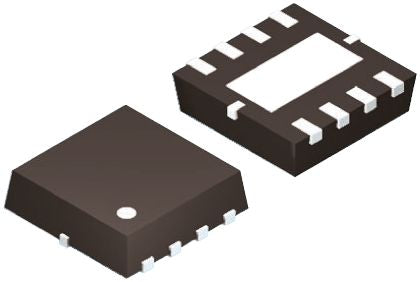

IRLHM620TRPBF N-Channel MOSFET, 26 A, 20 V HEXFET, 8-Pin PQFN Infineon [IRLHM620TRPBF]; 165-7503
by Infineon
0₫
Mã kho: 1657503
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 26 A |
| Maximum Drain Source Voltage | 20 V |
| Package Type | PQFN |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 3.5 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.1V |
| Minimum Gate Threshold Voltage | 0.5V |
| Maximum Power Dissipation | 2.7 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -12 V, +12 V |
| Number of Elements per Chip | 1 |
| Transistor Material | Si |
| Width | 3.3mm |
| Length | 3.3mm |
| Series | HEXFET |
| Typical Gate Charge @ Vgs | 52 nC @ 4.5 V |
| Height | 1mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
