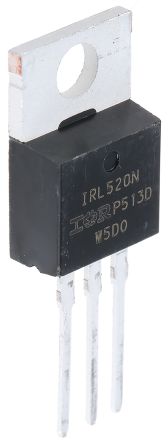

IRL520NPBF N-Channel MOSFET, 10 A, 100 V LogicFET, 3-Pin TO-220AB Infineon [IRL520NPBF]; 541-1196
by Infineon
0₫
Mã kho: 5411196
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 0.416666666666667 |
Maximum Drain Source Voltage | 100 V |
Package Type | TO-220AB |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 180 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2V |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 48 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -16 V, +16 V |
Number of Elements per Chip | 1 |
Height | 8.77mm |
Series | LogicFET |
Maximum Operating Temperature | +175 °C |
Transistor Material | Si |
Minimum Operating Temperature | -55 °C |
Typical Gate Charge @ Vgs | 20 nC @ 5 V |
