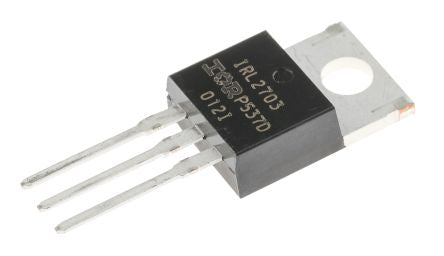

IRL2703PBF N-Channel MOSFET, 24 A, 30 V HEXFET, 3-Pin TO-220AB Infineon [IRL2703PBF]; 541-2177
by Infineon
0₫
Mã kho: 5412177
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 24 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | TO-220AB |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 40 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 45 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -16 V, +16 V |
| Number of Elements per Chip | 1 |
| Height | 8.77mm |
| Transistor Material | Si |
| Length | 10.54mm |
| Maximum Operating Temperature | +175 °C |
| Series | HEXFET |
| Width | 4.69mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 15 nC @ 4.5 V |
