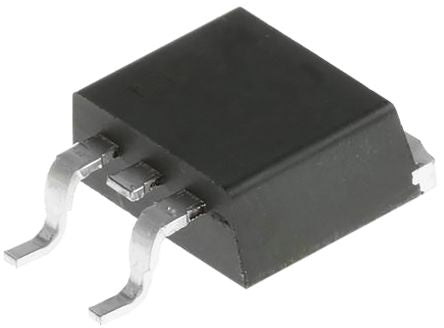

IRFS4020TRLPBF N-Channel MOSFET, 18 A, 200 V HEXFET, 3-Pin D2PAK Infineon [IRFS4020TRLPBF]; 130-1000
by Infineon
0₫
Mã kho: 1301000
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 18 A |
| Maximum Drain Source Voltage | 200 V |
| Package Type | D2PAK (TO-263) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 105 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4.9V |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 100 W |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Forward Diode Voltage | 1.3V |
| Length | 10.67mm |
| Width | 4.83mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 18 nC @ 10 V |
| Height | 9.65mm |
| Series | HEXFET |
| Maximum Operating Temperature | +175 °C |
