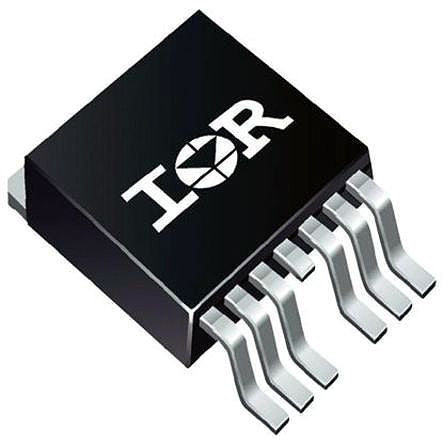

IRFS3006TRL7PP N-Channel MOSFET, 293 A, 60 V HEXFET, 7+Tab-Pin D2PAK Infineon [IRFS3006TRL7PP]; 130-0993
by Infineon
0₫
Mã kho: 1300993
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 293 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | D2PAK (TO-263) |
| Mounting Type | Surface Mount |
| Pin Count | 7 + Tab |
| Maximum Drain Source Resistance | 2.1 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 375 W |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Length | 10.67mm |
| Forward Diode Voltage | 1.3V |
| Height | 9.65mm |
| Typical Gate Charge @ Vgs | 200 nC @ 20 V |
| Width | 4.83mm |
| Series | HEXFET |
| Maximum Operating Temperature | +175 °C |
