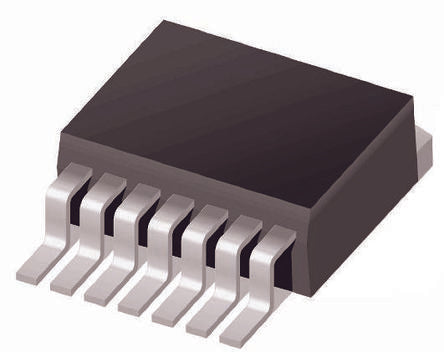

IRFS3006-7PPBF N-Channel MOSFET, 293 A, 60 V HEXFET, 7-Pin D2PAK Infineon [IRFS3006-7PPBF]; 165-7661
by Infineon
0₫
Mã kho: 1657661
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 293 A |
Maximum Drain Source Voltage | 60 V |
Package Type | D2PAK (TO-263) |
Mounting Type | Surface Mount |
Pin Count | 7 |
Maximum Drain Source Resistance | 2 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4V |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 375 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Length | 10.67mm |
Transistor Material | Si |
Typical Gate Charge @ Vgs | 200 nC @ 10 V |
Height | 4.83mm |
Width | 9.65mm |
Maximum Operating Temperature | +175 °C |
Series | HEXFET |
