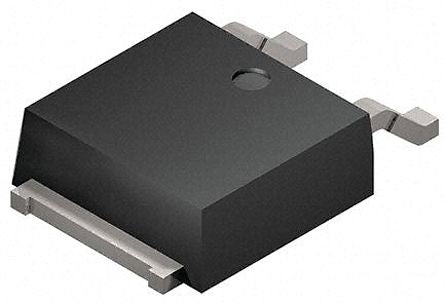

IRFR4510TRPBF N-Channel MOSFET, 63 A, 100 V HEXFET, 3-Pin DPAK Infineon [IRFR4510TRPBF]; 915-5011
by Infineon
0₫
Mã kho: 9155011
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 63 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | DPAK (TO-252) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 13.9 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 143 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 7.49mm |
| Series | HEXFET |
| Maximum Operating Temperature | +175 °C |
| Length | 6.73mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 54 nC @ 10 V |
| Forward Diode Voltage | 1.3V |
| Height | 2.39mm |
