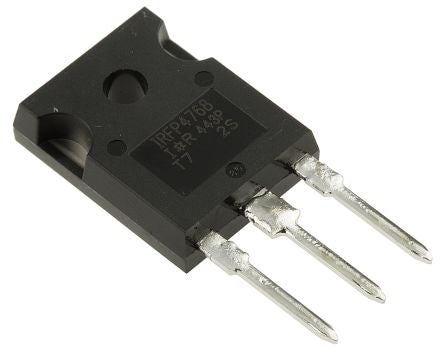

![Infineon IRFP4768PBF 1249021](http://nguyenxuong.com/cdn/shop/products/F6887020-01_444x353.jpg?v=1594163122)
IRFP4768PBF N-Channel MOSFET, 93 A, 250 V HEXFET, 3-Pin TO-247AC Infineon [IRFP4768PBF]; 124-9021
by Infineon
0₫
Mã kho: 1249021
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 93 A |
Maximum Drain Source Voltage | 250 V |
Package Type | TO-247AC |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 14.5 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 5V |
Minimum Gate Threshold Voltage | 3V |
Maximum Power Dissipation | 520 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Typical Gate Charge @ Vgs | 180 nC @ 10 V |
Height | 20.7mm |
Series | HEXFET |
Length | 15.87mm |
Minimum Operating Temperature | -55 °C |
Width | 5.31mm |
Maximum Operating Temperature | +175 °C |
Transistor Material | Si |
