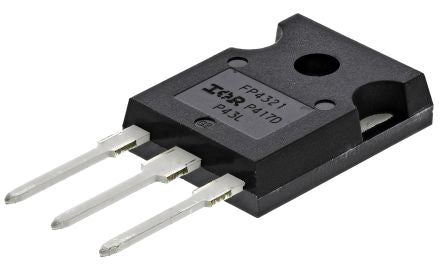

IRFP4321PBF N-Channel MOSFET, 78 A, 150 V HEXFET, 3-Pin TO-247AC Infineon [IRFP4321PBF]; 124-9017
by Infineon
0₫
Mã kho: 1249017
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 78 A |
| Maximum Drain Source Voltage | 150 V |
| Package Type | TO-247AC |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 16 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5V |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 310 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 5.3mm |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 71 nC @ 10 V |
| Height | 20.3mm |
| Series | HEXFET |
| Maximum Operating Temperature | +175 °C |
| Length | 15.9mm |
