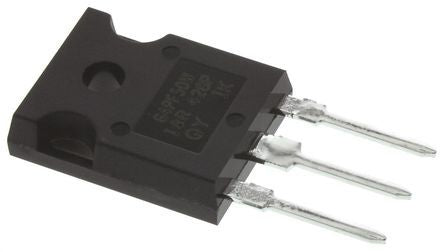

IRFP4127PBF N-Channel MOSFET, 75 A, 200 V HEXFET, 3-Pin TO-247AC Infineon [IRFP4127PBF]; 130-0987
by Infineon
0₫
Mã kho: 1300987
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 75 A |
Maximum Drain Source Voltage | 200 V |
Package Type | TO-247AC |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 21 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 5V |
Minimum Gate Threshold Voltage | 3V |
Maximum Power Dissipation | 341 W |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Width | 5.2mm |
Forward Diode Voltage | 1.3V |
Length | 16.13mm |
Typical Gate Charge @ Vgs | 100 nC @ 10 V |
Maximum Operating Temperature | +175 °C |
Series | HEXFET |
Height | 21.1mm |
