![Infineon IRFP250NPBF 9194810](http://nguyenxuong.com/cdn/shop/products/R9194810-01_444x289.jpg?v=1593775287)

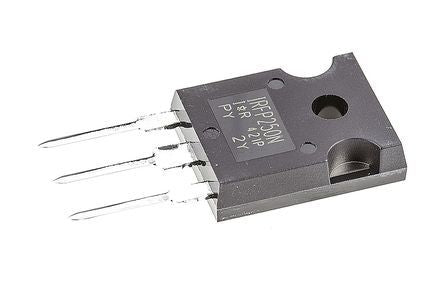

IRFP250NPBF N-Channel MOSFET, 30 A, 200 V HEXFET, 3-Pin TO-247AC Infineon [IRFP250NPBF]; 919-4810
by Infineon
0₫
Mã kho: 9194810
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 30 A |
Maximum Drain Source Voltage | 200 V |
Package Type | TO-247AC |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 75 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4V |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 214 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Length | 15.9mm |
Transistor Material | Si |
Minimum Operating Temperature | -55 °C |
Height | 20.3mm |
Width | 5.3mm |
Typical Gate Charge @ Vgs | 123 nC @ 10 V |
Series | HEXFET |
Maximum Operating Temperature | +175 °C |
