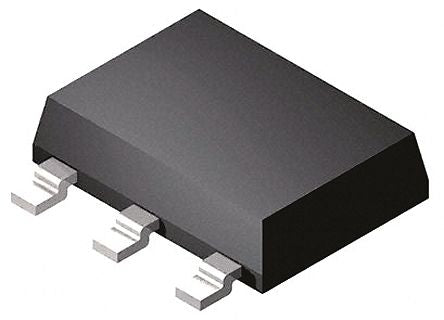

IRFL4315TRPBF N-Channel MOSFET, 2.6 A, 150 V HEXFET, 3+Tab-Pin SOT-223 Infineon [IRFL4315TRPBF]; 165-5560
by Infineon
0₫
Mã kho: 1655560
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 2.6 A |
| Maximum Drain Source Voltage | 150 V |
| Package Type | SOT-223 |
| Mounting Type | Surface Mount |
| Pin Count | 3 + Tab |
| Maximum Drain Source Resistance | 185 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5V |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 2.8 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Length | 6.7mm |
| Width | 3.7mm |
| Typical Gate Charge @ Vgs | 12 nC @ 10 V |
| Height | 1.8mm |
| Series | HEXFET |
| Maximum Operating Temperature | +150 °C |
