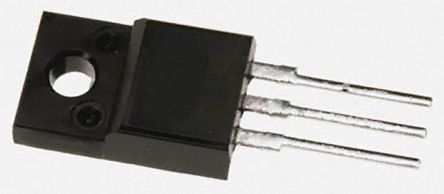

IRFI1310NPBF N-Channel MOSFET, 24 A, 100 V HEXFET, 3-Pin TO-220 Infineon [IRFI1310NPBF]; 542-9591
by Infineon
0₫
Mã kho: 5429591
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 24 A |
Maximum Drain Source Voltage | 100 V |
Package Type | TO-220 |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 36 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4V |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 56 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Typical Gate Charge @ Vgs | 120 nC @ 10 V |
Transistor Material | Si |
Width | 4.83mm |
Minimum Operating Temperature | -55 °C |
Height | 9.8mm |
Series | HEXFET |
Length | 10.75mm |
Maximum Operating Temperature | +175 °C |
