![Infineon IRFI1010NPBF 1661029](http://nguyenxuong.com/cdn/shop/products/R5429579-01_4b580ff9-cc3a-4cfa-ba69-067a1f706c14_444x194.jpg?v=1594421388)

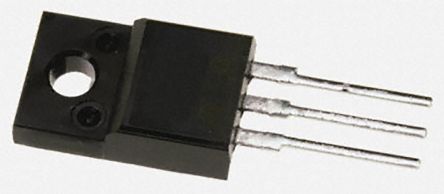

IRFI1010NPBF N-Channel MOSFET, 49 A, 55 V HEXFET, 3-Pin TO-220FP Infineon [IRFI1010NPBF]; 166-1029
by Infineon
0₫
Mã kho: 1661029
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 49 A |
Maximum Drain Source Voltage | 55 V |
Package Type | TO-220FP |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 12 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4V |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 58 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Length | 10.75mm |
Width | 4.83mm |
Transistor Material | Si |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +175 °C |
Series | HEXFET |
Height | 9.8mm |
Typical Gate Charge @ Vgs | 130 nC @ 10 V |
