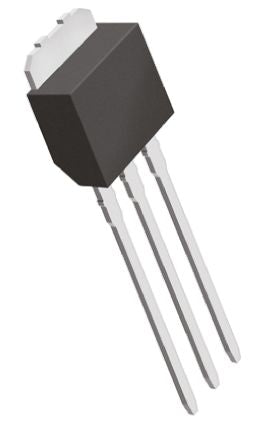

IRF9540NLPBF P-Channel MOSFET, 23 A, 100 V HEXFET, 3-Pin I2PAK Infineon [IRF9540NLPBF]; 165-7568
by Infineon
0₫
Mã kho: 1657568
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 23 A |
Maximum Drain Source Voltage | 100 V |
Package Type | I2PAK (TO-262) |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 117 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4V |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 3.8 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Length | 10.67mm |
Transistor Material | Si |
Typical Gate Charge @ Vgs | 97 nC @ 10 V |
Width | 4.83mm |
Maximum Operating Temperature | +175 °C |
Series | HEXFET |
Height | 9.65mm |
Minimum Operating Temperature | -55 °C |
