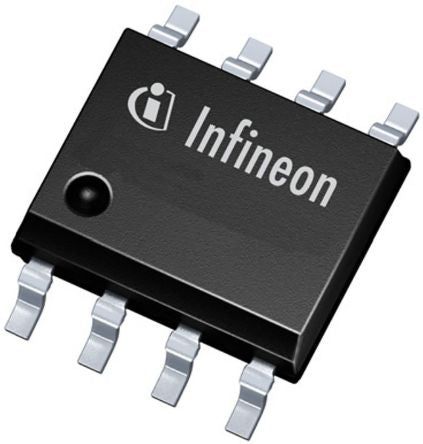

IRF9332TRPBF P-Channel MOSFET, 9.8 A, 30 V HEXFET, 8-Pin SOIC Infineon [IRF9332TRPBF]; 130-0968
by Infineon
0₫
Mã kho: 1300968
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 9.8 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 28.1 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.4V |
| Minimum Gate Threshold Voltage | 1.3V |
| Maximum Power Dissipation | 2.5 W |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Series | HEXFET |
| Length | 5mm |
| Typical Gate Charge @ Vgs | 27 nC @ 15 V |
| Width | 4mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 1.2V |
| Height | 1.5mm |
