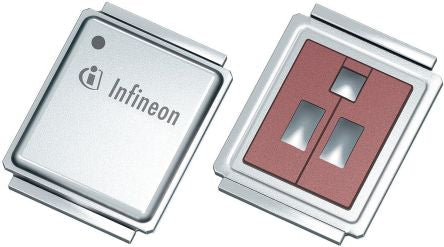

IRF7946TRPBF N-Channel MOSFET, 198 A, 40 V DirectFET, 3+Tab-Pin MX Infineon [IRF7946TRPBF]; 130-0965
by Infineon
0₫
Mã kho: 1300965
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 198 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | MX |
| Mounting Type | Surface Mount |
| Pin Count | 3 + Tab |
| Maximum Drain Source Resistance | 1.4 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3.9V |
| Minimum Gate Threshold Voltage | 2.2V |
| Maximum Power Dissipation | 96 W |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 141 nC @ 20 V |
| Length | 6.35mm |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 1.2V |
| Minimum Operating Temperature | -55 °C |
| Series | DirectFET |
| Height | 0.53mm |
| Width | 5.05mm |
