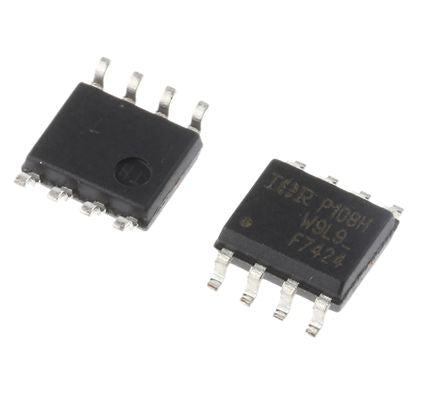

IRF7424PBF P-Channel MOSFET, 11 A, 30 V HEXFET, 8-Pin SOIC Infineon [IRF7424PBF]; 543-2092
by Infineon
0₫
Mã kho: 5432092
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 0.458333333333333 |
Maximum Drain Source Voltage | 30 V |
Package Type | SOIC |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 14 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.5V |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 2.5 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Length | 5mm |
Transistor Material | Si |
Width | 4mm |
Series | HEXFET |
Maximum Operating Temperature | +150 °C |
Typical Gate Charge @ Vgs | 75 nC @ 10 V |
Minimum Operating Temperature | -55 °C |
Height | 1.5mm |
