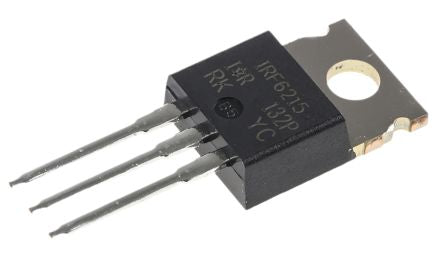

IRF6215PBF P-Channel MOSFET, 13 A, 150 V HEXFET, 3-Pin TO-220AB Infineon [IRF6215PBF]; 541-1742
by Infineon
0₫
Mã kho: 5411742
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 13 A |
Maximum Drain Source Voltage | 150 V |
Package Type | TO-220AB |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 290 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4V |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 110 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Typical Gate Charge @ Vgs | 66 nC @ 10 V |
Series | HEXFET |
Maximum Operating Temperature | +175 °C |
Length | 10.54mm |
Width | 4.69mm |
Transistor Material | Si |
Minimum Operating Temperature | -55 °C |
Height | 8.77mm |
