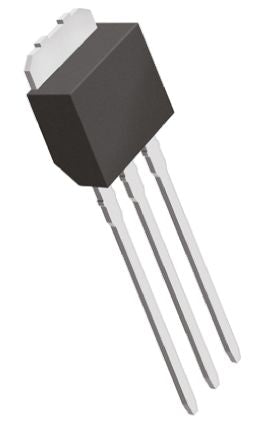

IRF5210LPBF P-Channel MOSFET, 38 A, 100 V HEXFET, 3-Pin I2PAK Infineon [IRF5210LPBF]; 650-3707
by Infineon
0₫
Mã kho: 6503707
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 38 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | I2PAK (TO-262) |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 60 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 3.1 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Height | 10.54mm |
| Transistor Material | Si |
| Series | HEXFET |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Width | 4.69mm |
| Length | 10.54mm |
| Typical Gate Charge @ Vgs | 150 nC @ 10 V |
