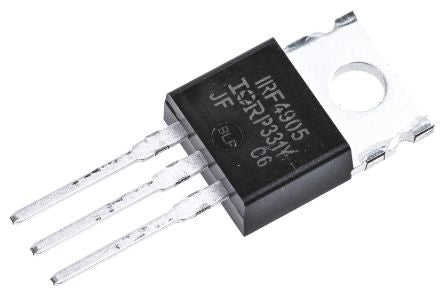

IRF4905PBF P-Channel MOSFET, 74 A, 55 V HEXFET, 3-Pin TO-220AB Infineon [IRF4905PBF]; 540-9799
by Infineon
0₫
Mã kho: 5409799
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 74 A |
| Maximum Drain Source Voltage | 55 V |
| Package Type | TO-220AB |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 20 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 200 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 180 nC @ 10 V |
| Height | 8.77mm |
| Series | HEXFET |
| Maximum Operating Temperature | +175 °C |
| Transistor Material | Si |
