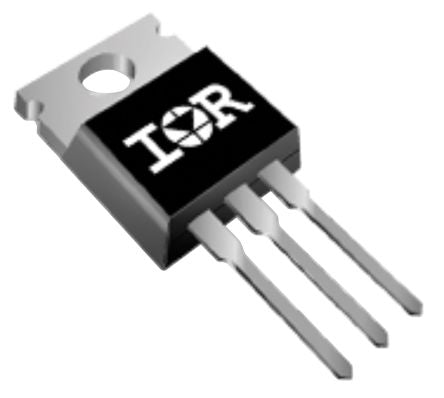

IRF1407PBF N-Channel MOSFET, 130 A, 75 V IRF1407PbF, 3 + Tab-Pin TO-220AB Infineon [IRF1407PBF]; 170-2243
by Infineon
0₫
Mã kho: 1702243
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 130 A |
| Maximum Drain Source Voltage | 75 V |
| Package Type | TO-220AB |
| Mounting Type | Through Hole |
| Pin Count | 3 + Tab |
| Maximum Drain Source Resistance | 7.8 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 330 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 4.83mm |
| Length | 10.67mm |
| Forward Diode Voltage | 1.3V |
| Typical Gate Charge @ Vgs | 160 nC @ 10 V |
| Series | IRF1407PbF |
| Height | 16.51mm |
| Maximum Operating Temperature | +175 °C |
