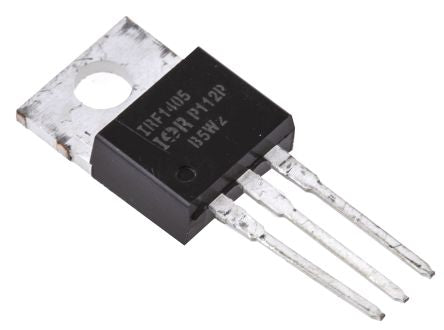

![Infineon IRF1405PBF 5431099](http://nguyenxuong.com/cdn/shop/products/F5431099-01_444x330.jpg?v=1594014644)
IRF1405PBF N-Channel MOSFET, 169 A, 55 V HEXFET, 3-Pin TO-220AB Infineon [IRF1405PBF]; 543-1099
by Infineon
0₫
Mã kho: 5431099
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 169 A |
Maximum Drain Source Voltage | 55 V |
Package Type | TO-220AB |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 5 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4V |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 330 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Maximum Operating Temperature | +175 °C |
Series | HEXFET |
Minimum Operating Temperature | -55 °C |
Typical Gate Charge @ Vgs | 170 nC @ 10 V |
Transistor Material | Si |
Height | 8.77mm |
