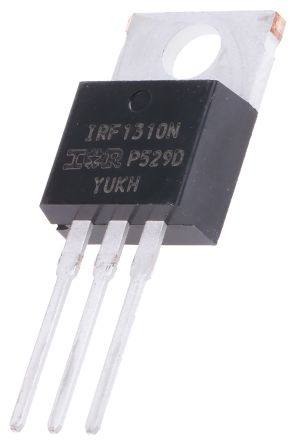

![Infineon IRF1310NPBF 5411506](http://nguyenxuong.com/cdn/shop/products/F5411506-01_299x444.jpg?v=1594013539)
IRF1310NPBF N-Channel MOSFET, 42 A, 100 V HEXFET, 3-Pin TO-220AB Infineon [IRF1310NPBF]; 541-1506
by Infineon
0₫
Mã kho: 5411506
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 42 A |
Maximum Drain Source Voltage | 100 V |
Package Type | TO-220AB |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 36 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4V |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 160 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Length | 10.54mm |
Typical Gate Charge @ Vgs | 110 nC @ 10 V |
Minimum Operating Temperature | -55 °C |
Width | 4.69mm |
Transistor Material | Si |
Height | 8.77mm |
Series | HEXFET |
Maximum Operating Temperature | +175 °C |
