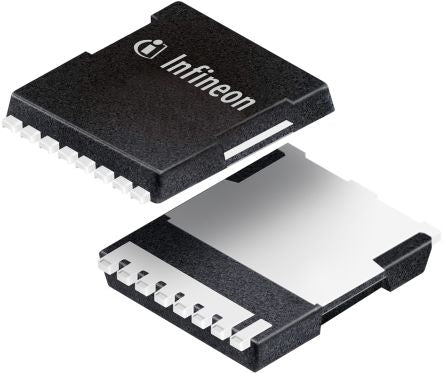

IPT004N03LATMA1 N-Channel MOSFET, 300 A, 30 V OptiMOS, 8+Tab-Pin HSOF Infineon [IPT004N03LATMA1]; 130-0929
by Infineon
0₫
Mã kho: 1300929
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 300 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | HSOF |
| Mounting Type | Surface Mount |
| Pin Count | 8 + Tab |
| Maximum Drain Source Resistance | 500 μΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.2V |
| Minimum Gate Threshold Voltage | 0.7V |
| Maximum Power Dissipation | 300 W |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 252 nC @ 10 V |
| Height | 2.4mm |
| Series | OptiMOS |
| Maximum Operating Temperature | +150 °C |
| Length | 10.1mm |
| Forward Diode Voltage | 1V |
| Width | 10.58mm |
