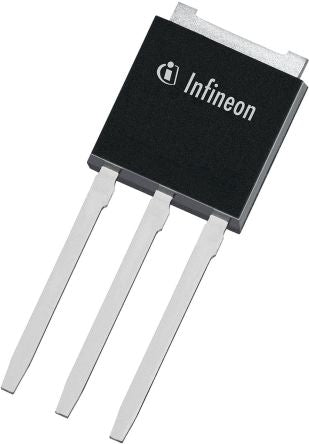

IPS65R400CEAKMA1 N-Channel MOSFET, 15.1 A, 700 V CoolMOS CE, 3-Pin IPAK Infineon [IPS65R400CEAKMA1]; 130-0928
by Infineon
0₫
Mã kho: 1300928
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 15.1 A |
| Maximum Drain Source Voltage | 700 V |
| Package Type | IPAK (TO-251) |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 400 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3.5V |
| Minimum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 118 W |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Height | 6.22mm |
| Series | CoolMOS CE |
| Minimum Operating Temperature | -55 °C |
| Width | 2.4mm |
| Typical Gate Charge @ Vgs | 39 nC @ 10 V |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 0.9V |
| Length | 6.73mm |
