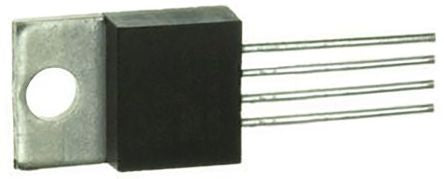

![Infineon IPP80P03P4L04AKSA1 1249058](http://nguyenxuong.com/cdn/shop/products/R1249058-01_444x179.jpg?v=1594347826)
IPP80P03P4L04AKSA1 P-Channel MOSFET, 80 A, 30 V OptiMOS P, 3-Pin TO-220 Infineon [IPP80P03P4L04AKSA1]; 124-9058
by Infineon
0₫
Mã kho: 1249058
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 80 A |
Maximum Drain Source Voltage | 30 V |
Package Type | TO-220 |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 7 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2V |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 137 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -16 V, +5 V |
Number of Elements per Chip | 1 |
Width | 4.4mm |
Minimum Operating Temperature | -55 °C |
Transistor Material | Si |
Series | OptiMOS P |
Maximum Operating Temperature | +175 °C |
Typical Gate Charge @ Vgs | 125 nC @ 10 V |
Length | 10mm |
Height | 15.65mm |
