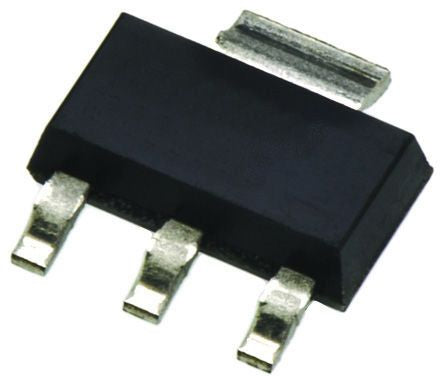

IPN60R2K1CEATMA1 N-Channel MOSFET, 3.7 A, 650 V CoolMOS CE, 3+Tab-Pin SOT-223 Infineon [IPN60R2K1CEATMA1]; 130-0919
by Infineon
0₫
Mã kho: 1300919
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 3.7 A |
| Maximum Drain Source Voltage | 650 V |
| Package Type | SOT-223 |
| Mounting Type | Surface Mount |
| Pin Count | 3 + Tab |
| Maximum Drain Source Resistance | 2.1 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3.5V |
| Minimum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 5 W |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Forward Diode Voltage | 0.9V |
| Series | CoolMOS CE |
| Height | 1.7mm |
| Width | 3.7mm |
| Typical Gate Charge @ Vgs | 6.7 nC @ 10 V |
| Length | 6.7mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
