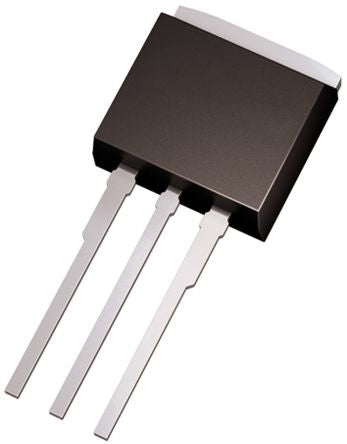

IPI80N06S207AKSA1 N-Channel MOSFET, 80 A, 55 V OptiMOS, 3-Pin I2PAK Infineon [IPI80N06S207AKSA1]; 857-6760
by Infineon
0₫
Mã kho: 8576760
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 80 A |
| Maximum Drain Source Voltage | 55 V |
| Package Type | I2PAK (TO-262) |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 6.6 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2.1V |
| Maximum Power Dissipation | 250 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Length | 10mm |
| Transistor Material | Si |
| Width | 4.4mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 86 nC @ 10 V |
| Maximum Operating Temperature | +175 °C |
| Height | 9.25mm |
| Series | OptiMOS |
