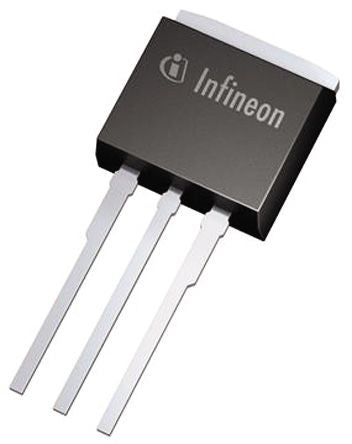

![Infineon IPI530N15N3GXKSA1 1655172](http://nguyenxuong.com/cdn/shop/products/R8576707-01_352x444.jpg?v=1594281111)
IPI530N15N3GXKSA1 N-Channel MOSFET, 21 A, 150 V OptiMOS T2, 3-Pin I2PAK Infineon [IPI530N15N3GXKSA1]; 165-5172
by Infineon
0₫
Mã kho: 1655172
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 21 A |
Maximum Drain Source Voltage | 150 V |
Package Type | I2PAK (TO-262) |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 53 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4V |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 68 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Width | 4.52mm |
Minimum Operating Temperature | -55 °C |
Length | 10.36mm |
Transistor Material | Si |
Typical Gate Charge @ Vgs | 8.7 nC @ 10 V |
Height | 9.45mm |
Series | OptiMOS T2 |
Maximum Operating Temperature | +175 °C |
