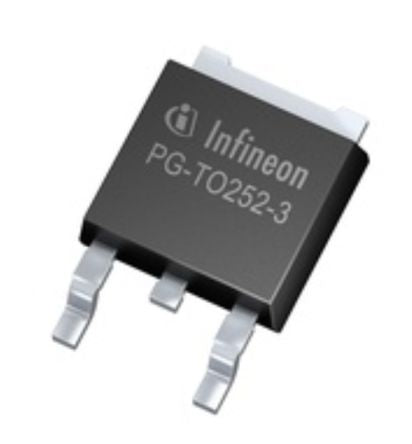

IPD50N10S3L16ATMA1 N-Channel MOSFET, 50 A, 100 V IPD50N10S3L-16, 3 + 2 Tab-Pin DPAK Infineon [IPD50N10S3L16ATMA1]; 170-2270
by Infineon
0₫
Mã kho: 1702270
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 50 A |
Maximum Drain Source Voltage | 100 V |
Package Type | TO-252 |
Mounting Type | Surface Mount |
Pin Count | 3 + 2 Tab |
Maximum Drain Source Resistance | 19.9 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.4V |
Minimum Gate Threshold Voltage | 1.2V |
Maximum Power Dissipation | 100 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | 20 V |
Number of Elements per Chip | 1 |
Maximum Operating Temperature | +175 °C |
Width | 7.22mm |
Minimum Operating Temperature | -55 °C |
Length | 6.5mm |
Forward Diode Voltage | 1.2V |
Automotive Standard | AEC-Q101 |
Typical Gate Charge @ Vgs | 49 nC @ 10 V |
Height | 2.3mm |
Series | IPD50N10S3L-16 |
