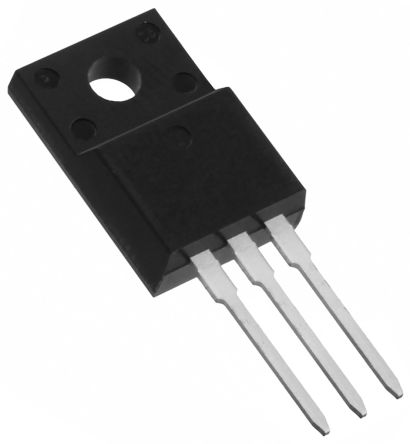

IPA60R230P6XKSA1 N-Channel MOSFET, 16.8 A, 600 V CoolMOS P6, 3+Tab-Pin TO-220FP Infineon [IPA60R230P6XKSA1]; 133-9907
by Infineon
0₫
Mã kho: 1339907
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 16.8 A |
| Maximum Drain Source Voltage | 600 V |
| Package Type | TO-220FP |
| Mounting Type | Through Hole |
| Pin Count | 3 + Tab |
| Maximum Drain Source Resistance | 530 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4.5V |
| Minimum Gate Threshold Voltage | 3.5V |
| Maximum Power Dissipation | 33 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 4.9mm |
| Forward Diode Voltage | 0.9V |
| Transistor Material | Si |
| Length | 10.65mm |
| Typical Gate Charge @ Vgs | 31 nC @ 10 V |
| Height | 16.15mm |
| Series | CoolMOS P6 |
| Maximum Operating Temperature | +150 °C |
