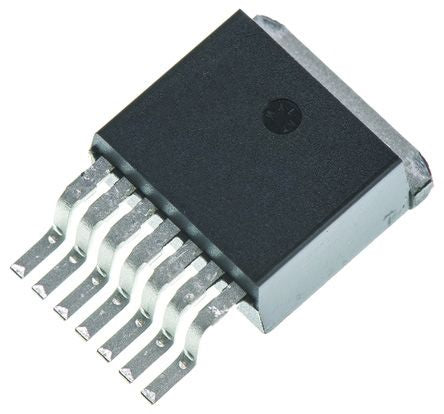

BTS282ZE3180AATMA2 N-Channel MOSFET, 80 A, 49 V TEMPFET, 7+Tab-Pin D2PAK Infineon [BTS282ZE3180AATMA2]; 110-7112
by Infineon
0₫
Mã kho: 1107112
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 80 A |
| Maximum Drain Source Voltage | 49 V |
| Package Type | D2PAK (TO-263) |
| Mounting Type | Surface Mount |
| Pin Count | 7 + Tab |
| Maximum Drain Source Resistance | 9.5 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Minimum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 300 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 9.25mm |
| Height | 4.4mm |
| Series | TEMPFET |
| Maximum Operating Temperature | +175 °C |
| Length | 10mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -40 °C |
| Typical Gate Charge @ Vgs | 155 nC @ 10 V |
| Forward Diode Voltage | 1.4V |
