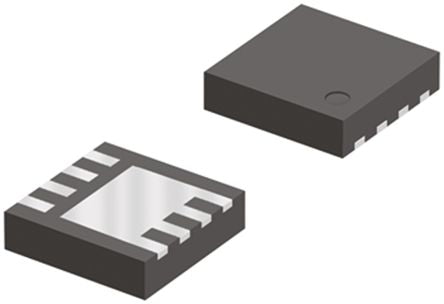

BSZ130N03MSGATMA1 N-Channel MOSFET, 35 A, 30 V OptiMOS 3, 8-Pin TSDSON Infineon [BSZ130N03MSGATMA1]; 165-5917
by Infineon
0₫
Mã kho: 1655917
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 35 A |
Maximum Drain Source Voltage | 30 V |
Package Type | TSDSON |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 15 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2V |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 25 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Typical Gate Charge @ Vgs | 6.1 nC @ 4.5 V |
Height | 1.1mm |
Maximum Operating Temperature | +150 °C |
Series | OptiMOS 3 |
Length | 3.4mm |
Transistor Material | Si |
Width | 3.4mm |
Minimum Operating Temperature | -55 °C |
