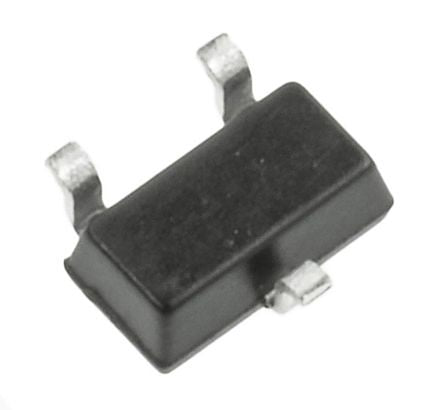

BSS223PWH6327XTSA1 P-Channel MOSFET, 310 mA, 20 V OptiMOS P, 3-Pin SOT-323 Infineon [BSS223PWH6327XTSA1]; 165-5861
by Infineon
0₫
Mã kho: 1655861
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 310 mA |
Maximum Drain Source Voltage | 20 V |
Package Type | SOT-323 (SC-70) |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 2.1 Ω |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 1.2V |
Minimum Gate Threshold Voltage | 0.6V |
Maximum Power Dissipation | 250 mW |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -12 V, +12 V |
Number of Elements per Chip | 1 |
Typical Gate Charge @ Vgs | 0.5 nC @ 4.5 V |
Height | 0.8mm |
Maximum Operating Temperature | +150 °C |
Length | 2mm |
Transistor Material | Si |
Width | 1.25mm |
Minimum Operating Temperature | -55 °C |
Series | OptiMOS P |
