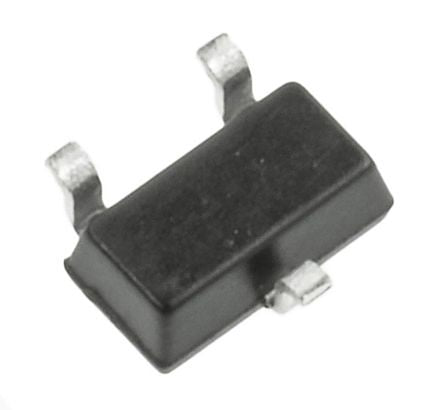

BSR202NL6327HTSA1 N-Channel MOSFET, 3.8 A, 20 V OptiMOS 2, 3-Pin SOT-346 Infineon [BSR202NL6327HTSA1]; 165-5625
by Infineon
0₫
Mã kho: 1655625
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 3.8 A |
| Maximum Drain Source Voltage | 20 V |
| Package Type | SOT-346 (SC-59) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 33 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.2V |
| Minimum Gate Threshold Voltage | 0.7V |
| Maximum Power Dissipation | 500 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -12 V, +12 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 1.6mm |
| Maximum Operating Temperature | +150 °C |
| Series | OptiMOS 2 |
| Height | 1.1mm |
| Typical Gate Charge @ Vgs | 5.8 nC @ 4.5 V |
| Transistor Material | Si |
| Length | 3mm |
