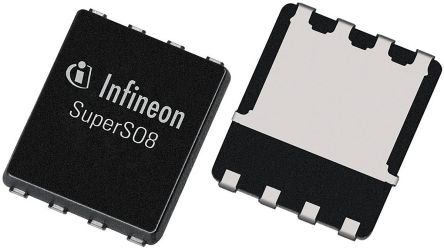

BSC0901NSATMA1 N-Channel MOSFET, 100 A, 30 V OptiMOS, 8-Pin TDSON Infineon [BSC0901NSATMA1]; 133-6584
by Infineon
0₫
Mã kho: 1336584
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 100 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | TDSON |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 2.4 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Minimum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 69 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Length | 5.35mm |
| Forward Diode Voltage | 1V |
| Width | 6.35mm |
| Typical Gate Charge @ Vgs | 44 nC @ 10 V |
| Series | OptiMOS |
| Maximum Operating Temperature | +150 °C |
| Height | 1.1mm |
