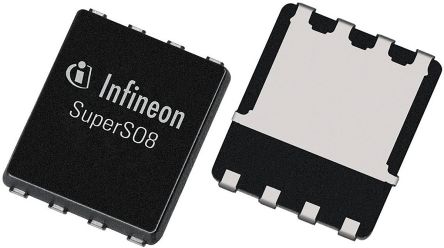

BSC009NE2LS5ATMA1 N-Channel MOSFET, 100 A, 25 V OptiMOS 5, 8-Pin SuperSO Infineon [BSC009NE2LS5ATMA1]; 133-6576
by Infineon
0₫
Mã kho: 1336576
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 100 A |
| Maximum Drain Source Voltage | 25 V |
| Package Type | SuperSO |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 1.25 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Minimum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 74 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | +16 V |
| Number of Elements per Chip | 1 |
| Width | 6.35mm |
| Maximum Operating Temperature | +150 °C |
| Length | 5.49mm |
| Forward Diode Voltage | 1V |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 43 nC @ 10 V |
| Height | 1.1mm |
| Series | OptiMOS 5 |
| Minimum Operating Temperature | -55 °C |
