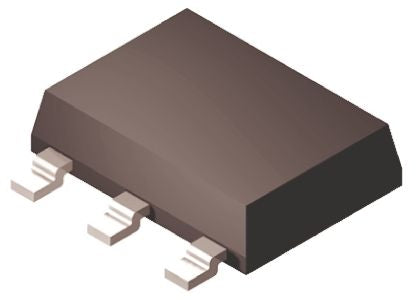

ZXMS6005DGTA N-Channel MOSFET, 2 A, 70 V IntelliFET, 3+Tab-Pin SOT-223 Diodes Inc [ZXMS6005DGTA]; 738-5204
by DiodesZetex
0₫
Mã kho: 7385204
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 0.0833333333333333 |
Maximum Drain Source Voltage | 70 V |
Package Type | SOT-223 |
Mounting Type | Surface Mount |
Pin Count | 3 + Tab |
Maximum Drain Source Resistance | 250 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 1.5V |
Maximum Power Dissipation | 3 W |
Transistor Configuration | Single |
Number of Elements per Chip | 1 |
Width | 3.55mm |
Height | 1.65mm |
Series | IntelliFET |
Maximum Operating Temperature | +125 °C |
Transistor Material | Si |
Length | 6.55mm |
Minimum Operating Temperature | -40 °C |
